ECHAM-SALSA Aerosol Data Introduction

General introduction how the station co-located ECHAM-SALSA data can be read using the online catalog and used for a small cluster analysis.

# general
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
import pandas as pd
import os
import intake
# dask
import dask
import dask.array as da
from dask.distributed import Client
# statistics
import scipy.cluster.hierarchy as sch
from scipy.spatial.distance import pdist, squareform

Since we are working with large datasets, we use Dask to avoid overloading the memory.

client = Client()
client

/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/distributed/node.py:182: UserWarning: Port 8787 is already in use.
Perhaps you already have a cluster running?
Hosting the HTTP server on port 41461 instead
  warnings.warn(

Client

Client-034fe6af-2795-11f0-ae8f-5a3dbe771ea2

Connection method: Cluster object	Cluster type: distributed.LocalCluster
Dashboard: /user/fc%3Auid%3Ac001c18e-88e2-449d-be62-663893db7f63/proxy/41461/status

Launch dashboard in JupyterLab

Cluster Info

LocalCluster

91fec4af

Dashboard: /user/fc%3Auid%3Ac001c18e-88e2-449d-be62-663893db7f63/proxy/41461/status	Workers: 4
Total threads: 16	Total memory: 16.00 GiB
Status: running	Using processes: True

Scheduler Info

Scheduler

Scheduler-82b6ad00-cd7b-457d-aff2-6fef7a0878a0

Comm: tcp://127.0.0.1:40099	Workers: 4
Dashboard: /user/fc%3Auid%3Ac001c18e-88e2-449d-be62-663893db7f63/proxy/41461/status	Total threads: 16
Started: Just now	Total memory: 16.00 GiB

Workers

Worker: 0

Comm: tcp://127.0.0.1:40965	Total threads: 4
Dashboard: /user/fc%3Auid%3Ac001c18e-88e2-449d-be62-663893db7f63/proxy/35191/status	Memory: 4.00 GiB
Nanny: tcp://127.0.0.1:41991
Local directory: /tmp/dask-scratch-space/worker-flktvsiq

Worker: 1

Comm: tcp://127.0.0.1:42531	Total threads: 4
Dashboard: /user/fc%3Auid%3Ac001c18e-88e2-449d-be62-663893db7f63/proxy/36161/status	Memory: 4.00 GiB
Nanny: tcp://127.0.0.1:46387
Local directory: /tmp/dask-scratch-space/worker-bh5r0czt

Worker: 2

Comm: tcp://127.0.0.1:35245	Total threads: 4
Dashboard: /user/fc%3Auid%3Ac001c18e-88e2-449d-be62-663893db7f63/proxy/41291/status	Memory: 4.00 GiB
Nanny: tcp://127.0.0.1:45361
Local directory: /tmp/dask-scratch-space/worker-fyxf1jwc

Worker: 3

Comm: tcp://127.0.0.1:33061	Total threads: 4
Dashboard: /user/fc%3Auid%3Ac001c18e-88e2-449d-be62-663893db7f63/proxy/34863/status	Memory: 4.00 GiB
Nanny: tcp://127.0.0.1:38699
Local directory: /tmp/dask-scratch-space/worker-akt_bedt

path = ('/mnt/craas2-ns9988k/data/catalogs/')
filename = os.path.join(path, 'salsa_catalog.json')
col = intake.open_esm_datastore(filename)

col

salsa_cat catalog with 10 dataset(s) from 8928 asset(s):

	unique
bin_index	10
variable	93
species	7
bin	17
category	2
soluble	2
unit	3
long_name	93
start_time	96
end_time	96
time_range	96
vertical_levels	1
path	8928
derived_variable	0

This provides an overview of what kind of data we are dealing with. For example there are two unique values for the attribute “soluble”, since it can only be either True or False. The bins are sorted into insoluble and soluble bins.

SALSA aerosol bin structure

Bin	bin_index	Species	Soluble	Center diameter (nm)	Upper bound	Lower bound
1a1	i1	H2SO4, OC	True	4.79	3.0	7.66
1a2	i2	H2SO4, OC	True	12.2	7.66	19.6
1a3	i3	H2SO4, OC	True	31.3	19.6	50.0
2a1	i4	H2SO4, DU, OC, SS, BC	True	69.5	50.0	96.7
2a2	i5	H2SO4, DU, OC, SS, BC	True	135.0	96.7	187.0
2a3	i6	H2SO4, DU, OC, SS, BC	True	260.0	187.0	362.0
2a4	i7	H2SO4, DU, OC, SS, BC	True	503.0	362.0	700.0
2a5	i8	H2SO4, DU, OC, SS, BC	True	1090.0	700.0	1700.0
2a6	i9	H2SO4, DU, OC, SS, BC	True	2650.0	1700.0	4120.0
2a7	i10	H2SO4, DU, OC, SS, BC	True	6420.0	4120.0	10000.0
2b1	i4	H2SO4, DU, OC, BC	False	69.5	50.0	96.7
2b2	i5	H2SO4, DU, OC, BC	False	135.0	96.7	187.0
2b3	i6	H2SO4, DU, OC, BC	False	260.0	187.0	362.0
2b4	i7	H2SO4, DU, OC, BC	False	503.0	362.0	700.0
2b5	i8	H2SO4, DU, OC, BC	False	1090.0	700.0	1700.0
2b6	i9	H2SO4, DU, OC, BC	False	2650.0	1700.0	4120.0
2b7	i10	H2SO4, DU, OC, BC	False	6420.0	4120.0	10000.0

H2SO4 is sulfate aerosol, DU is mineral dust, OC is organic carbon, and SS is sea spray. There are three size groups for aerosol in ECHAM-SALSA. 1a: The smallest bin range, only contains Sulfate and is considered soluble. 2a: The larger soluble range, which contains all aerosol species. 2b: The larger insoluble range, which also contains all aerosols. The bin index is the same for the soluble/insoluble bins in the larger range.

NOTE: The bin_index attribute is not an official naming. If you use this for plotting later, it might be worth using radii or the original bin names instead.

Data subsets

Select for a specific time period or species with search. To check out, what species are available, we can use .unique().

col.df['species'].unique()

array(['bc', 'conccn', 'du', 'h2so4', 'mmrtr', 'oc', 'ss'], dtype=object)

cat = col.search(species=['bc','du','ss','h2so4','oc'], #, now we get only the mass mixing ratios for all species
                 vertical_coord='pressure' # or 'hybrid' if you are fancy. This is only up to ~200hPa
                #start_time=["2012-01-01"],
				#bin_index= ["i1"],
				#variable = ["h2so4_1a1"],
				#bin = ["1a1"],
				#soluble = [True'],
				#unit = ['kg/kg']
                )
cat

salsa_cat catalog with 10 dataset(s) from 4320 asset(s):

	unique
bin_index	10
variable	45
species	4
bin	17
category	1
soluble	2
unit	1
long_name	45
start_time	96
end_time	96
time_range	96
vertical_levels	1
path	4320
derived_variable	0

cat.df['species'].unique()

array(['du', 'h2so4', 'oc', 'ss'], dtype=object)

Create a dictionary

Now we can create a dictionary of the datasets we have selected. This will automatically aggregate the selected time steps. For this step, you usually need Dask (activated above) and it might take a couple of minutes, depending on how much data you have selected.

dset_dict = cat.to_dataset_dict()

--> The keys in the returned dictionary of datasets are constructed as follows:
	'bin_index'

/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')
/opt/conda/envs/pangeo-notebook/lib/python3.11/site-packages/intake_esm/core.py:253: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
  records = grouped.get_group(internal_key).to_dict(orient='records')

100.00% [10/10 03:50<00:00]

The keys for the dictionary are the bin_index values. We can adapt this if a different data structure is more useful for your analysis (e.g. have the bins as keys instead of the bin_index). You may want to convert from hybrid coordinates to pressure coordinates. Information on how this is done is in the documentation.

dset_dict['i1'] # check out the smallest bin

<xarray.Dataset> Size: 66MB
Dimensions:    (time: 23376, ncells: 15, lev: 47, nhyi: 48, nhym: 47)
Coordinates:
  * time       (time) datetime64[ns] 187kB 2012-01-01T02:52:30 ... 2019-12-31...
    lon        (ncells) float64 120B dask.array<chunksize=(15,), meta=np.ndarray>
    lat        (ncells) float64 120B dask.array<chunksize=(15,), meta=np.ndarray>
  * lev        (lev) float64 376B 1.0 2.0 3.0 4.0 5.0 ... 44.0 45.0 46.0 47.0
    hyai       (nhyi) float64 384B dask.array<chunksize=(48,), meta=np.ndarray>
    hybi       (nhyi) float64 384B dask.array<chunksize=(48,), meta=np.ndarray>
    hyam       (nhym) float64 376B dask.array<chunksize=(47,), meta=np.ndarray>
    hybm       (nhym) float64 376B dask.array<chunksize=(47,), meta=np.ndarray>
Dimensions without coordinates: ncells, nhyi, nhym
Data variables:
    h2so4_1a1  (time, lev, ncells) float32 66MB dask.array<chunksize=(248, 47, 15), meta=np.ndarray>
Attributes: (12/24)
    CDI:                               Climate Data Interface version 2.0.5 (...
    Conventions:                       CF-1.4
    title:                             SALSA_GlobalTraj-PRECIP
    echam_version:                     6.3.02
    advection:                         Lin & Rood
    physics:                           Modified ECMWF physics
    ...                                ...
    intake_esm_attrs:soluble:          True
    intake_esm_attrs:unit:             kg/kg
    intake_esm_attrs:long_name:        sulfuric acid 1a1
    intake_esm_attrs:vertical_levels:  47
    intake_esm_attrs:_data_format_:    netcdf
    intake_esm_dataset_key:            i1

xarray.Dataset

• Dimensions:
  • time: 23376
  • ncells: 15
  • lev: 47
  • nhyi: 48
  • nhym: 47
• Coordinates: (8)
  • time
    (time)
    datetime64[ns]
    2012-01-01T02:52:30 ... 2019-12-...

    standard_name :

    time

    axis :

    T

    array(['2012-01-01T02:52:30.000000000', '2012-01-01T05:52:30.000000000',
           '2012-01-01T08:52:30.000000000', ..., '2019-12-31T17:52:30.000000000',
           '2019-12-31T20:52:30.000000000', '2019-12-31T23:52:30.000000000'],
          dtype='datetime64[ns]')

  • lon
    (ncells)
    float64
    dask.array<chunksize=(15,), meta=np.ndarray>

    standard_name :

    longitude

    long_name :

    longitude

    units :

    degrees_east

    Array Chunk Bytes 120 B 120 B Shape (15,) (15,) Dask graph 1 chunks in 475 graph layers Data type float64 numpy.ndarray

  • lat
    (ncells)
    float64
    dask.array<chunksize=(15,), meta=np.ndarray>

    standard_name :

    latitude

    long_name :

    latitude

    units :

    degrees_north

    Array Chunk Bytes 120 B 120 B Shape (15,) (15,) Dask graph 1 chunks in 475 graph layers Data type float64 numpy.ndarray

  • lev
    (lev)
    float64
    1.0 2.0 3.0 4.0 ... 45.0 46.0 47.0

    standard_name :

    hybrid_sigma_pressure

    long_name :

    hybrid level at layer midpoints

    formula :

    hyam hybm (mlev=hyam+hybm*aps)

    formula_terms :

    ap: hyam b: hybm ps: aps

    units :

    level

    positive :

    down

    array([ 1.,  2.,  3.,  4.,  5.,  6.,  7.,  8.,  9., 10., 11., 12., 13., 14.,
           15., 16., 17., 18., 19., 20., 21., 22., 23., 24., 25., 26., 27., 28.,
           29., 30., 31., 32., 33., 34., 35., 36., 37., 38., 39., 40., 41., 42.,
           43., 44., 45., 46., 47.])

  • hyai
    (nhyi)
    float64
    dask.array<chunksize=(48,), meta=np.ndarray>

    long_name :

    hybrid A coefficient at layer interfaces

    units :

    Pa

    Array Chunk Bytes 384 B 384 B Shape (48,) (48,) Dask graph 1 chunks in 475 graph layers Data type float64 numpy.ndarray

  • hybi
    (nhyi)
    float64
    dask.array<chunksize=(48,), meta=np.ndarray>

    long_name :

    hybrid B coefficient at layer interfaces

    units :

    1

    Array Chunk Bytes 384 B 384 B Shape (48,) (48,) Dask graph 1 chunks in 475 graph layers Data type float64 numpy.ndarray

  • hyam
    (nhym)
    float64
    dask.array<chunksize=(47,), meta=np.ndarray>

    long_name :

    hybrid A coefficient at layer midpoints

    units :

    Pa

    Array Chunk Bytes 376 B 376 B Shape (47,) (47,) Dask graph 1 chunks in 475 graph layers Data type float64 numpy.ndarray

  • hybm
    (nhym)
    float64
    dask.array<chunksize=(47,), meta=np.ndarray>

    long_name :

    hybrid B coefficient at layer midpoints

    units :

    1

    Array Chunk Bytes 376 B 376 B Shape (47,) (47,) Dask graph 1 chunks in 475 graph layers Data type float64 numpy.ndarray

• Data variables: (1)
  • h2so4_1a1
    (time, lev, ncells)
    float32
    dask.array<chunksize=(248, 47, 15), meta=np.ndarray>

    long_name :

    sulfuric acid 1a1

    units :

    kg/kg

    CDI_grid_type :

    unstructured

    description :

    mass_fraction_of_sulfuric_acid_dry_aerosol_in_air_1a1

    Array Chunk Bytes 62.87 MiB 682.97 kiB Shape (23376, 47, 15) (248, 47, 15) Dask graph 96 chunks in 193 graph layers Data type float32 numpy.ndarray

• Indexes: (2)
  • time
    PandasIndex

    PandasIndex(DatetimeIndex(['2012-01-01 02:52:30', '2012-01-01 05:52:30',
                   '2012-01-01 08:52:30', '2012-01-01 11:52:30',
                   '2012-01-01 14:52:30', '2012-01-01 17:52:30',
                   '2012-01-01 20:52:30', '2012-01-01 23:52:30',
                   '2012-01-02 02:52:30', '2012-01-02 05:52:30',
                   ...
                   '2019-12-30 20:52:30', '2019-12-30 23:52:30',
                   '2019-12-31 02:52:30', '2019-12-31 05:52:30',
                   '2019-12-31 08:52:30', '2019-12-31 11:52:30',
                   '2019-12-31 14:52:30', '2019-12-31 17:52:30',
                   '2019-12-31 20:52:30', '2019-12-31 23:52:30'],
                  dtype='datetime64[ns]', name='time', length=23376, freq=None))

  • lev
    PandasIndex

    PandasIndex(Index([ 1.0,  2.0,  3.0,  4.0,  5.0,  6.0,  7.0,  8.0,  9.0, 10.0, 11.0, 12.0,
           13.0, 14.0, 15.0, 16.0, 17.0, 18.0, 19.0, 20.0, 21.0, 22.0, 23.0, 24.0,
           25.0, 26.0, 27.0, 28.0, 29.0, 30.0, 31.0, 32.0, 33.0, 34.0, 35.0, 36.0,
           37.0, 38.0, 39.0, 40.0, 41.0, 42.0, 43.0, 44.0, 45.0, 46.0, 47.0],
          dtype='float64', name='lev'))

• Attributes: (24)

  CDI :

  Climate Data Interface version 2.0.5 (https://mpimet.mpg.de/cdi)

  Conventions :

  CF-1.4

  title :

  SALSA_GlobalTraj-PRECIP

  echam_version :

  6.3.02

  advection :

  Lin & Rood

  physics :

  Modified ECMWF physics

  radiation :

  Using PSrad/RRTMG radiation

  operating_system :

  Linux 4.18.0-372.105.1.csc1.el8_6.x86_64 x86_64

  user_name :

  Muhammed Irfan (mirfan)

  jsbach_version :

  3.10

  truncation :

  63

  CDO :

  Climate Data Operators version 2.0.5 (https://mpimet.mpg.de/cdo)

  intake_esm_vars :

  ['h2so4_1a1']

  intake_esm_attrs:bin_index :

  i1

  intake_esm_attrs:variable :

  h2so4_1a1

  intake_esm_attrs:species :

  h2so4

  intake_esm_attrs:bin :

  1a1

  intake_esm_attrs:category :

  species_mmr

  intake_esm_attrs:soluble :

  True

  intake_esm_attrs:unit :

  kg/kg

  intake_esm_attrs:long_name :

  sulfuric acid 1a1

  intake_esm_attrs:vertical_levels :

  47

  intake_esm_attrs:_data_format_ :

  netcdf

  intake_esm_dataset_key :

  i1

Station names

The data we have is collocated with measuring stations. Currently the dimension ncells describes the lat-lon location. We can replace this with the actual station names.

# read the csv with station information
station_file = pd.read_csv('/mnt/craas2-ns9988k-dl-ns9560k/chrisvbr/ECHAM-SALSA-data/locations.csv', delimiter = ',', index_col=0)

names = np.array(station_file.columns)

# replace ncells with station names
for key in dset_dict.keys():
    dset_dict[key] = dset_dict[key].rename({'ncells': 'station'}).reset_coords(drop=True)
    dset_dict[key]['station'] = ('station', names)
dset_dict['i1'].station

<xarray.DataArray 'station' (station: 15)> Size: 120B
array(['ZEP', 'SMR-II', 'ATTO', 'MHD', 'SGP', 'CHC', 'BIR-II', 'PAL',
       'Vavihill', 'JFJ', 'FKL', 'SMEAR-I', 'Villum', 'Izana', 'Maldives'],
      dtype=object)
Coordinates:
  * station  (station) object 120B 'ZEP' 'SMR-II' 'ATTO' ... 'Izana' 'Maldives'

xarray.DataArray

'station'

• station: 15

• 'ZEP' 'SMR-II' 'ATTO' 'MHD' ... 'SMEAR-I' 'Villum' 'Izana' 'Maldives'

  array(['ZEP', 'SMR-II', 'ATTO', 'MHD', 'SGP', 'CHC', 'BIR-II', 'PAL',
         'Vavihill', 'JFJ', 'FKL', 'SMEAR-I', 'Villum', 'Izana', 'Maldives'],
        dtype=object)

• Coordinates: (1)
  • station
    (station)
    object
    'ZEP' 'SMR-II' ... 'Maldives'

    array(['ZEP', 'SMR-II', 'ATTO', 'MHD', 'SGP', 'CHC', 'BIR-II', 'PAL',
           'Vavihill', 'JFJ', 'FKL', 'SMEAR-I', 'Villum', 'Izana', 'Maldives'],
          dtype=object)

• Indexes: (1)
  • station
    PandasIndex

    PandasIndex(Index(['ZEP', 'SMR-II', 'ATTO', 'MHD', 'SGP', 'CHC', 'BIR-II', 'PAL',
           'Vavihill', 'JFJ', 'FKL', 'SMEAR-I', 'Villum', 'Izana', 'Maldives'],
          dtype='object', name='station'))

• Attributes: (0)

To get an overview of the stations:

station_file

	ZEP	SMR-II	ATTO	MHD	SGP	CHC	BIR-II	PAL	Vavihill	JFJ	FKL	SMEAR-I	Villum	Izana	Maldives
lon	11.89	24.28	-59.0	-9.9	-97.485	-68.13	8.25	24.12	13.15	7.98	25.67	29.6	-16.67	-16.4994	73.183049
lat	78.91	61.85	-2.143	53.33	36.605	-16.35	58.39	67.97	56.02	46.55	35.34	67.75	81.6	28.309	6.77648
grid_nr_echam	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
nice_name	Zeppelin	SMEAR-II	ATTO	Mace Head	Southern Great Plains	Chacaltaya	Birkenes-II	Pallas	Vavihill	Jungfraujoch	Finokalia	Värriö (SMEAR-I)	Villum	Izana	Maldives
lon_str	11.89e	24.28e	59.00w	9.90w	97.48w	68.13w	8.25e	24.12e	13.15e	7.98e	25.67e	29.60e	16.67w	16.50w	73.18e
lat_str	78.91n	61.85n	2.14s	53.33n	36.60n	16.35s	58.39n	67.97n	56.02n	46.55n	35.34n	67.75n	81.60n	28.31n	6.78n
fincl2lonlat	'11.89e_78.91n'	'24.28e_61.85n'	'59.00w_2.14s'	'9.90w_53.33n'	'97.48w_36.60n'	'68.13w_16.35s'	'8.25e_58.39n'	'24.12e_67.97n'	'13.15e_56.02n'	'7.98e_46.55n'	'25.67e_35.34n'	'29.60e_67.75n'	'16.67w_81.60n'	'16.50w_28.31n'	'73.18e_6.78n'

Example

Here is a simple example what one can do with one station. This is a time average for Zeppelin station (Svalbard) at one height level.

ZEP_mean = {}
for key, dataset in dset_dict.items():
    time_mean = dataset.mean(dim='time')  # Calculate the time mean
    ZEP_mean[key] = time_mean.sel(station="ZEP").isel(plev=21)  # Select level and station
sorted_keys = sorted(ZEP_mean.keys(), key=lambda x: int(x[1:])) # sort by the bins by number (technically not necessary but it is neater)
ZEP_sorted = {key: ZEP_mean[key] for key in sorted_keys}
print('bin_index before sorting:', ZEP_mean.keys())
print('bin_index after sorting', ZEP_sorted.keys())

bin_index before sorting: dict_keys(['i3', 'i1', 'i2', 'i4', 'i10', 'i9', 'i7', 'i8', 'i6', 'i5'])
bin_index after sorting dict_keys(['i1', 'i2', 'i3', 'i4', 'i5', 'i6', 'i7', 'i8', 'i9', 'i10'])

Currently the data is structured as bin.variable, whereas the variablename also incorporates the bin (e.g. “h2so4_1a1), and each dictionary entry is one dataset.

for key in ZEP_sorted.keys():
	print('bin_index:', key, list(ZEP_sorted[key].data_vars))

bin_index: i1 ['h2so4_1a1']
bin_index: i2 ['h2so4_1a2']
bin_index: i3 ['h2so4_1a3']
bin_index: i4 ['du_2a1', 'du_2b1', 'h2so4_2a1', 'oc_2a1', 'oc_2b1', 'ss_2a1']
bin_index: i5 ['du_2a2', 'du_2b2', 'h2so4_2a2', 'oc_2a2', 'oc_2b2', 'ss_2a2']
bin_index: i6 ['du_2a3', 'du_2b3', 'h2so4_2a3', 'oc_2a3', 'oc_2b3', 'ss_2a3']
bin_index: i7 ['du_2a4', 'du_2b4', 'h2so4_2a4', 'oc_2a4', 'oc_2b4', 'ss_2a4']
bin_index: i8 ['du_2a5', 'du_2b5', 'h2so4_2a5', 'oc_2a5', 'oc_2b5', 'ss_2a5']
bin_index: i9 ['du_2a6', 'du_2b6', 'h2so4_2a6', 'oc_2a6', 'oc_2b6', 'ss_2a6']
bin_index: i10 ['du_2a7', 'du_2b7', 'h2so4_2a7', 'oc_2a7', 'oc_2b7', 'ss_2a7']

Due to the averaging, we now ended up with a single value per variable in each dataset in the dictionary. This is an attempt to make a nicer representation in the form of a table wit bins as rows and species as columns.

species_names = ['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a'] # a for soluble, b for insoluble, consider changing this to du and du_insoluble
for key in ZEP_sorted.keys():
    varnames = list(ZEP_sorted[key].data_vars)
    species = [
        (s[:-3] + s[-2:-1])
        for s in varnames
		]
    rename_map = dict(zip(varnames, species))
    ZEP_sorted[key] = ZEP_sorted[key].rename(rename_map)
    for i in species_names:
        if i not in species:
            ZEP_sorted[key][i] = np.array(0.)
    print(species)

['h2so4_a']
['h2so4_a']
['h2so4_a']
['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a']
['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a']
['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a']
['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a']
['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a']
['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a']
['du_a', 'du_b', 'h2so4_a', 'oc_a', 'oc_b', 'ss_a']

data = []
# Get values from each bin/variable
for bin_key in ZEP_sorted.keys():
    bin_values = {var_key: ZEP_sorted[bin_key][var_key].values.tolist() for var_key in ZEP_sorted[bin_key].keys()}

    # Add the bin values along with the bin key to the data list
    data.append({'bin_index': bin_key, **bin_values})

df = pd.DataFrame(data)
df.set_index('bin_index', inplace=True)
print(df)

                h2so4_a          du_a          du_b          oc_a  \
bin_index
i1         1.325061e-14  0.000000e+00  0.000000e+00  0.000000e+00
i2         1.784687e-13  0.000000e+00  0.000000e+00  0.000000e+00
i3         4.289806e-12  0.000000e+00  0.000000e+00  0.000000e+00
i4         1.623046e-11  1.734552e-16  3.983981e-17  5.243597e-13
i5         5.285494e-11  7.083557e-14  9.193136e-13  7.713593e-12
i6         1.458554e-10  7.269574e-13  2.182388e-11  3.534453e-11
i7         8.502354e-11  3.762841e-13  5.071292e-11  1.152995e-11
i8         2.467885e-11  9.475300e-14  6.709647e-10  1.032573e-12
i9         2.045511e-12  1.502657e-14  1.520320e-09  1.903570e-13
i10        4.482060e-13  8.427441e-15  4.398044e-10  1.699937e-13

                   oc_b          ss_a
bin_index
i1         0.000000e+00  0.000000e+00
i2         0.000000e+00  0.000000e+00
i3         0.000000e+00  0.000000e+00
i4         3.988984e-12  9.648818e-16
i5         7.459203e-11  1.188612e-13
i6         1.545449e-10  1.943569e-12
i7         2.676844e-11  3.739875e-12
i8         2.014282e-12  1.041029e-11
i9         4.326198e-13  3.699939e-11
i10        1.723364e-14  5.779686e-12

Visualization

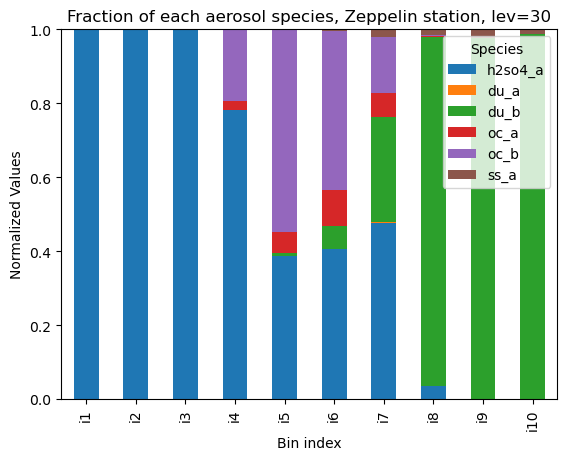

Now we can finally plot the data to get an idea of the distribution of aerosol species. Here is an example with normalized values.

# Normalize the transposed DataFrame so that each category sums up to 1
df_normalized = df.div(df.sum(axis=1), axis=0)

# Create a stacked bar plot with categories on the x-axis
ax = df_normalized.plot(kind='bar', stacked=True)
plt.title("Fraction of each aerosol species, Zeppelin station, lev=30")
plt.xlabel("Bin index")
plt.ylabel("Normalized Values")
plt.legend(title="Species", loc='upper right')
plt.ylim(0, 1)
plt.show()

# Example data: 10 bins with 3 features
bins = df_normalized.index

# Calculate the distance matrix
distance_matrix = pdist(df_normalized, metric='euclidean')
dendrogram = sch.linkage(distance_matrix, method='ward')  # You can choose other methods like 'single', 'complete', etc.
# Create the hierarchical clustering
# Using the ward method is common for minimizing variance
linkage_matrix = sch.linkage(distance_matrix, method='ward')

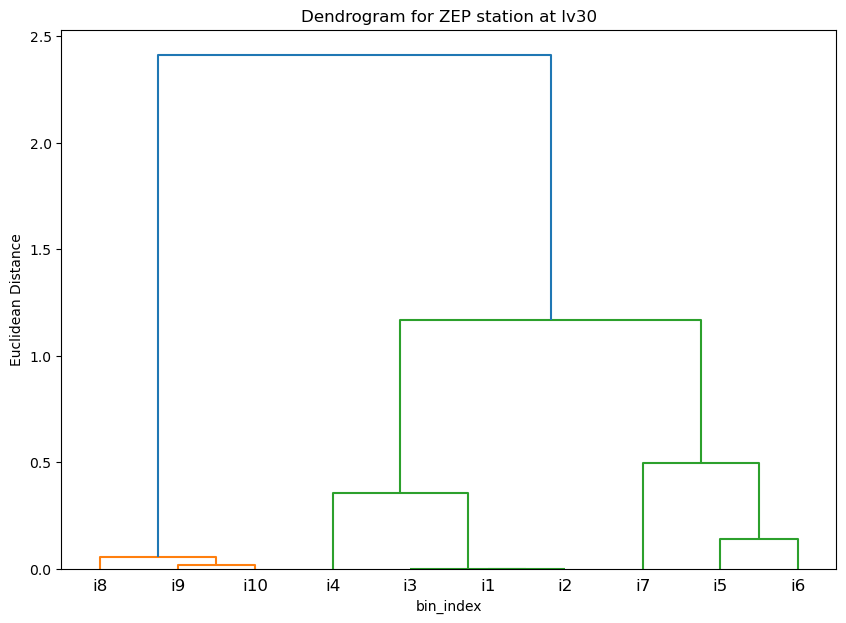

plt.figure(figsize=(10, 7))
dendrogram = sch.dendrogram(linkage_matrix, labels=bins)
plt.title('Dendrogram for ZEP station at lv30')
plt.xlabel('bin_index')
plt.ylabel('Euclidean Distance')
plt.show()
